A 3D CT scan for facial surgery is a computed tomography study reconstructed into a rotatable, measurable model of the facial skeleton, used to decide what the bone needs before any incision is planned.
Skin and soft tissue shape a first impression, but the skeleton sets the proportions they drape over. When a patient tells me their chin looks weak, their jaw too wide or one cheek flatter than the other, the first thing I need to know is which layer is responsible. In complex facial surgery I answer that with a 3D CT scan rather than a surface simulation, because the scan measures the bone directly and the simulation can only guess at it.
This article covers how I use 3D CT imaging to analyze the facial skeleton and plan skeletal surgery. For chin augmentation technique, candidacy, risks and recovery, see my page on chin augmentation in Dubai.
What are the key takeaways about 3D CT imaging for facial surgery?
3D CT imaging replaces estimation with measurement of the bone itself, and it earns its place only where the bony framework drives the surgical decision.
- A 3D CT scan reconstructs the facial skeleton as a rotatable model that can be measured in millimeters, not a picture of the skin.
- Its decisive job is to answer the question a photograph cannot: is the concern in the bone or in the soft tissue?
- Cone-beam CT usually gives the bone detail facial planning needs at a lower dose than conventional CT, but it shows muscle and fat poorly.
- The plan is written as numbers before surgery: millimeters of projection, volume of bone to remove, and the distance kept from the nerve.
- The comparative evidence comes from orthognathic jaw surgery, where 3D planning improves accuracy by about half a millimeter to just over a millimeter; it has not been shown to shorten operating time.
- I recommend a scan only when it can change the decision: skeletal contouring, revision, asymmetry and reconstruction, not routine soft-tissue surgery.
Why can’t surface photo simulations plan facial bone surgery?
Surface simulations cannot plan bone surgery because they only see the skin and have no information about the skeleton underneath. They can show a softer jaw or a stronger chin, but not whether the bone can deliver it.
A photograph cannot tell a weak chin caused by a retruded lower jaw (mandibular retrognathia) from one caused by dental position or a thin soft-tissue pad. It cannot measure the thickness of the malar bone to decide whether augmentation is needed or reduction is possible. And it cannot show where the nerve runs inside the jaw, which is the line I must not cross when reducing a mandibular angle.
I still use photographs: they record the skin, the smile and the expression, and they help a patient show me what bothers them. What I don’t do is let a photograph stand in for a skeletal diagnosis. Designing bone surgery from a surface image is like an architect designing a facade without knowing where the load-bearing walls are.
How does a 3D CT scan become a measurable model of the facial skeleton?
The scanner records the face as a stack of thin cross-sectional images, and software separates bone from soft tissue by density to build a three-dimensional surface of the skeleton. That surface can then be rotated, sectioned and measured to fractions of a millimeter.
The step that matters most, and that patients never see, is segmentation: choosing the density threshold that defines what counts as bone. Set it too high and thin bone, such as the orbital floor, the nasal bones or a thin malar surface, drops out of the model and appears as false holes. Set it too low and soft tissue clings to the bone surface and inflates its volume. I check the threshold myself on the cross-sectional slices rather than accepting the automatic setting, because every later measurement inherits that choice.
On the segmented model I place anatomical landmarks (nasion, pogonion, menton, gonion and the zygomatic eminences) and measure the distances and angles between them in three dimensions. This is cephalometric analysis carried from the traditional single side-view X-ray into full three dimensions, so that left and right can be compared and nothing overlaps.
What is the difference between cone-beam CT and conventional CT for facial planning?
Cone-beam CT captures the facial skeleton in one rotation, usually at a lower radiation dose than conventional CT, and shows bone very well but muscle and fat poorly. Conventional CT shows soft tissue better and is the choice after major trauma or when the soft tissue itself must be measured.
| Feature | Cone-beam CT (CBCT) | Conventional (multislice) CT |
|---|---|---|
| Radiation dose | Usually lower; varies widely with the machine and the field of view | Higher for the same region |
| Bone detail of the facial skeleton | Excellent | Excellent |
| Muscle, fat and swelling | Poorly shown | Well shown |
| Patient position | Usually seated or standing | Lying down |
| Streaks from dental fillings and crowns | Can be marked around the teeth | Present, usually easier to manage |
| Where I use it | Elective chin, cheek, jaw, forehead and nasal bone planning | After major trauma, extensive reconstruction, or when muscle bulk itself must be measured |
How to read this table: Neither scanner is better in general. The right column to follow is the one whose strengths match the question being asked: for most elective skeletal contouring that is cone-beam CT, and where muscle, swelling or extensive fractures matter it is conventional CT.
What does a 3D CT scan measure in the facial skeleton?
It measures bone prominence, bone deficiency, nasal bony architecture, asymmetry and the position of nerves and tooth roots, each as a number rather than an impression.
- Bone prominence and volume: exact measurement of the mandibular angles, the malar eminences or frontal bossing, which answers whether a concern comes from excess bone or from soft tissue.
- Bone deficiency: objective identification of underdevelopment in the chin (mentum), cheekbones or jawline that no amount of soft-tissue filler can truly correct.
- Nasal bony architecture: septal deviation, how much of a dorsal hump is bone and how much cartilage, and the thickness of the nasal bones where osteotomies would run.
- Asymmetry: the exact skeletal origin of a left-right difference, separated from soft-tissue imbalance.
- Nerves and tooth roots: the course of the inferior alveolar nerve through the mandible, the position of the mental foramen and the tips of the tooth roots, which set the safe limits for jaw and chin bone cuts.
This turns planning from artistic estimation into measurable goals.

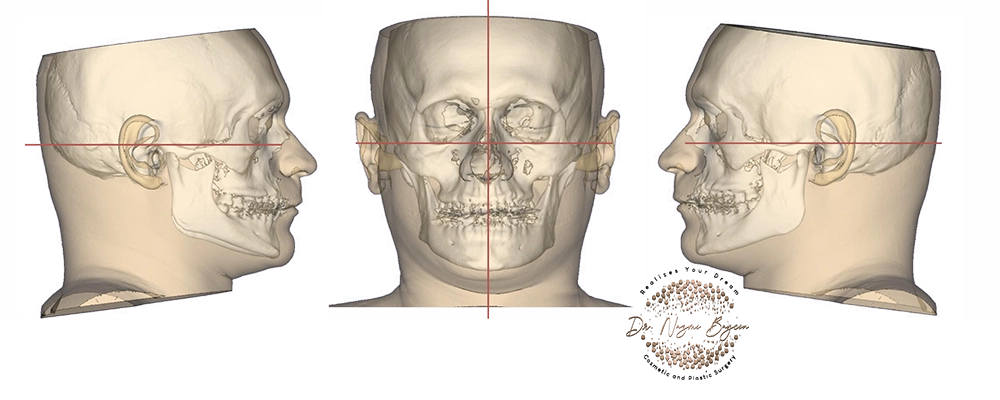

3D CT facial bone analysis — a measurable digital model of the facial skeleton used for precision surgical planning — by Dr. Nazmi Baycin, Dubai.
How does 3D CT imaging compare with surface photo simulation?
3D CT imaging measures the bone itself, while photo simulation edits a picture of the skin. They answer different questions and are not interchangeable.
| Capability | 3D CT imaging | Surface / photo simulation |
|---|---|---|
| Sees the bone | Yes, the full skeletal model | No, skin surface only |
| Separates a bone cause from a soft-tissue cause | Yes | No |
| Measurement | Millimeters, in three dimensions | Estimated and illustrative |
| Shows nerves and tooth roots | Yes | No |
| Shows skin, expression and smile | Limited and static | Yes, its main strength |
| Predicts the final appearance of the face | Approximate only: soft tissue does not follow bone millimeter for millimeter | Illustrative, not a prediction |
| Radiation | Yes, kept low with cone-beam CT | None |
| Custom implant design | Enabled by exact bone topography | Not possible |
| Asymmetry and revision planning | Root-cause skeletal analysis | Surface only |
| Best used for | Decisions that permanently change the facial skeleton | Discussing goals and documenting the face |
How to read this table: Read across each row rather than down each column. Where the photo column is stronger, such as skin, expression and no radiation, I use photographs; where the decision depends on the bone, only the CT column can answer. In complex cases I use both, each for its own question.
How does 3D CT separate a bone problem from a soft-tissue problem?
3D CT separates the two by measuring the bone directly, so whatever the bone does not explain must come from muscle, fat or skin. That subtraction is often the most useful thing the scan gives me.
| Concern | If the cause is bone, the scan shows | If the cause is soft tissue, the scan shows | How it changes the plan |
|---|---|---|---|
| Weak chin | A short or retruded bony chin with a measurable projection deficit | A normal bony chin; the deficit is in the soft-tissue pad or the dental position | Bone: implant or sliding genioplasty. Dental or soft tissue: a different conversation, sometimes an orthodontic opinion |
| Wide lower face | Flared or prominent mandibular angles | Normal angles; the width comes from the masseter muscle, best confirmed by examination, ultrasound or conventional CT | Bone: angle reduction. Muscle: no bone surgery |
| Flat cheek | An underprojected zygoma | A normal zygoma with loss of midface soft-tissue volume | Bone: malar augmentation. Soft tissue: volume restoration instead of bone work |
| Prominent cheek | A wide zygomatic body or arch | Normal bone with soft-tissue fullness | Bone: malar reduction. Soft tissue: no bone surgery |
| Nasal hump | A dominant bony cap | A mainly cartilaginous dorsum | Changes whether and where osteotomies are needed |
| Facial asymmetry | A localized skeletal difference between sides | A symmetric skeleton with soft-tissue imbalance | Correction is directed at the right layer and the right side |
| Sloping or flat forehead | Low frontal projection or an uneven brow ridge | Normal bone; the concern is brow position or soft tissue | Bone: frontal contouring or augmentation. Soft tissue: no bone surgery |
How to read this table: Find the concern in the first column, then compare the two middle columns with what a scan actually shows. The last column is the reason the scan exists: the same complaint leads to a different operation, or to no bone surgery at all, depending on which middle column matches.
In my consultations, one of the most useful findings is a normal bone measurement: a patient who comes in asking for jaw reduction whose angles measure within a normal range, with the width coming from muscle. Telling that patient that bone surgery would not help them is, to my mind, as valuable as anything else the scan does.
How do I turn 3D CT data into a surgical plan?
I turn the scan into a plan in three steps: confirm the diagnosis on the model, rehearse the change virtually in millimeters, and only then choose how the change will be delivered. Each step is written down before the operation, so the operating room is where the plan is carried out, not where it is invented.
How is the diagnosis confirmed on the 3D model?
I confirm it by checking the patient’s complaint against the measurements, landmark by landmark, and by reading the cross-sectional slices, not only the rendered surface.
A rendered 3D surface is persuasive, but it can hide segmentation errors; the slices show what the scanner actually recorded. Is a wide jaw a robust mandibular angle or masseter hypertrophy? Is a flat cheek thin soft tissue or an underprojected zygoma? If the measurements do not support the complaint, I say so before discussing any operation.
How is the planned change measured in millimeters?
In planning software I add, move or remove bone on the virtual skeleton by a defined amount and see the new proportions against the whole face.
For augmentation that means a projection in millimeters at defined points. For reduction it means a volume of bone and a cutting line kept at a measured distance from the nerve canal and the tooth roots. I check the new skeleton from the front, the side and from below, because a chin that looks right in profile can still look too wide or too narrow from the front.
When does the plan lead to a custom implant rather than a stock one?
A custom implant becomes the better choice when the bone surface is irregular, asymmetric or previously operated on, so that no stock shape will sit flush against it.
The scan supplies the exact bony topography an implant has to sit against, which is what makes a patient-specific implant possible at all. How that model becomes a printed implant is a subject in its own right, which I set out in my article on custom 3D-printed facial implants in Dubai. Where a stock implant or a sliding genioplasty is the better choice, as in many cases of chin augmentation in Dubai, the same data guides the selection and the size of the pocket.
Which facial procedures does 3D CT planning change?
3D CT planning changes procedures that permanently alter the facial skeleton: chin, cheekbone, jaw and forehead contouring, complex rhinoplasty involving the nasal bones, and reconstruction after injury.
- Chin augmentation or reduction: whether an implant or a sliding genioplasty fits the bone, and exactly how much projection is needed. How chin projection and jawline proportion are decided together is the subject of my article on chin and jawline structural harmony in Dubai.
- Cheekbone augmentation or reduction: separating midface soft-tissue deflation from true skeletal deficiency, so the correction is directed at the right layer.
- Forehead, brow ridge and temples: frontal projection, brow ridge prominence and temporal depth measured directly. How those measurements become a patient-specific frontal implant is the subject of my article on forehead bone augmentation in Dubai.
- Jawline sculpting: mapping the mandible and the course of the inferior alveolar nerve before mandibular angle reduction or jawline augmentation.
- Complex rhinoplasty: the thickness and asymmetry of the bony pyramid in revision and major primary cases, where osteotomies have to be planned rather than improvised; the operation itself is covered on my page on rhinoplasty in Dubai.
- Reconstruction after injury: rebuilding orbital walls, zygomatic arches or the mandible using the mirrored unaffected side or a pre-injury scan as the template.
What mistakes in 3D CT planning do I watch for, and how are they avoided?
The most common mistakes happen before the operation, in the scan and its reading: a wrong bite or head position, an unchecked segmentation, and treating the bone model as if it were the face. Each one is preventable with a fixed protocol.
| Mistake | What goes wrong | How I avoid it |
|---|---|---|
| Scanning with the teeth apart or in a shifted bite | The chin and jaw are recorded in the wrong position, so projection is mismeasured | The scan is taken with the teeth together in the habitual bite and the lips relaxed |
| A tilted head and no reference plane | Asymmetry appears that is not really there | The model is oriented to defined reference planes, such as the Frankfort horizontal and the midsagittal plane, before anything is measured |
| Accepting the automatic segmentation | Thin bone disappears as false holes, or soft tissue is added to the bone | I check the threshold on the cross-sectional slices |
| Ignoring metal streaks from dental work | Fillings, crowns or braces hide the bone around the teeth and lower jaw | Affected zones are marked and read on the slices, not on the rendered surface |
| Mirroring a side that is not normal | The correction copies a compensation instead of the true anatomy | Both sides are checked against the facial midline before one is used as a template |
| Treating a bone change as a face change | The patient expects the soft tissue to move exactly with the bone | The facial effect is presented as an expected range, not a promise |
| Using an outdated scan | The anatomy has changed through injury, surgery or orthodontic treatment | A new scan is taken whenever the anatomy may have changed |
| Scanning when it cannot change the decision | Radiation without a benefit | A scan is recommended only when its answer would change the plan |
How to read this table: Each row pairs a failure with its cause and its prevention. Because almost all of them occur before surgery, I treat the scan protocol and the reading of the scan as part of the operation, not as paperwork.
What does the evidence show about 3D virtual planning?
The comparative evidence comes from orthognathic jaw surgery, where 3D virtual planning places the bone closer to the plan than two-dimensional planning, by about half a millimeter on average and by about 1.2 mm when custom surgical guides are used. It has not been shown to shorten operating time, and it has not been tested directly in cosmetic facial contouring.
A 2024 systematic review and meta-analysis by Lee and colleagues pooled 13 studies comparing 3D virtual planning with conventional two-dimensional planning in jaw surgery. Across 10 studies reporting accuracy, the achieved bone position was on average 0.54 mm closer to the plan with virtual planning, and in the 3 studies that carried the plan into the operating room with custom surgical guides, it was 1.20 mm closer. Across the 4 studies that reported operating time, virtual planning saved about 10 minutes on average, but the range of plausible results ran from a 46-minute saving to a 26-minute loss, and the difference was not statistically significant. The authors note high variation between studies, and they excluded studies limited to genioplasty or malarplasty, which are the procedures closest to cosmetic contouring.
A 2024 narrative review by Shalabi and colleagues selected 36 articles and describes virtual planning as giving precise translation of the plan and good functional and aesthetic results. Its own reading of the randomized trials is mixed, however: several found better bone accuracy with virtual planning, two found no difference, and one found similar accuracy with a higher radiation dose for the 3D pathway. It also reports that soft-tissue prediction is less accurate than bone prediction. Its closing statement that 3D printing shortens operating time is not supported by the pooled analysis above, so I do not repeat it.
| Source | Design | What it found | What it does not show |
|---|---|---|---|
| Lee, Oh and Kim, 2024 | Systematic review and meta-analysis of 13 orthognathic studies (7 randomized trials, 6 retrospective) | 3D planning placed the jaw about 0.5 mm closer to the plan (10 studies); about 1.2 mm closer with custom surgical guides (3 studies) | No significant saving in operating time (4 studies); studies limited to genioplasty or malarplasty were excluded; heterogeneity was high |
| Shalabi and colleagues, 2024 | Narrative literature review of 36 selected articles | Describes how virtual planning works and reports that several randomized trials favor it for bone accuracy | No pooled estimate or formal quality appraisal; its own summary of the trials is mixed, and soft-tissue prediction was less accurate than bone prediction |
How to read this table: The third column is what each source supports; the fourth is where I stop. I extend the accuracy finding to cosmetic skeletal contouring as a principle, because the same imaging and planning steps are used, but no trial has measured these procedures directly.
How does the 3D model change the consent conversation?
The 3D model lets a patient see their own skeleton and the measured change being proposed, so consent rests on their anatomy rather than on a hope.
I can show where the chin is underprojected, or which side of the mandible is driving the imbalance they see in the mirror, and how many millimeters we are discussing. I also show the model’s limits: it predicts the bone precisely and the soft tissue only approximately, so I describe the expected facial change as a range. A patient who understands both the measurement and its limit is in a far better position to decide than one shown a polished simulation.
When do I recommend a 3D CT scan before facial surgery, and when don’t I?
I recommend a 3D CT scan when the diagnosis is unclear, the anatomy has been altered by previous surgery or injury, or the operation permanently changes the facial skeleton. I don’t recommend it for soft-tissue procedures, where the answer would not change the plan.
| Situation | Do I recommend a 3D CT scan? | Why |
|---|---|---|
| Chin augmentation or reduction where implant versus sliding genioplasty is undecided | Yes | The bone shape and the nerve position decide between the two |
| Cheekbone augmentation or reduction | Yes | Bone versus soft-tissue cause, and arch anatomy for reduction |
| Mandibular angle reduction | Yes | The nerve canal sets the safe limit of the cut |
| Forehead or brow ridge contouring | Yes | Frontal projection, bone thickness and the frontal sinus must be measured |
| Revision rhinoplasty after previous osteotomies, or a major bony deformity | Yes | The bony pyramid is altered or asymmetric |
| Primary rhinoplasty with a mainly cartilaginous change | Usually not | The answer rarely changes the plan |
| Facial asymmetry of unclear origin | Yes | Treating the wrong layer gives a disappointing result |
| Reconstruction after facial injury | Yes | Fracture pattern and mirror-image planning |
| Soft-tissue procedures such as facelift, eyelid surgery or fillers | No | The skeleton is not being changed |
| Pregnancy | No, for elective planning | Radiation is avoided; planning waits |
How to read this table: Read the middle column as a default, not a rule. If my examination and the photographs already answer the skeletal question, a scan adds radiation without adding a decision, and I say so.
What do patients ask most about 3D CT imaging for facial surgery?
Patients most often ask about radiation, about scans done elsewhere, and about whether the model shows their future face; the answers below are specific to the scan and how I use it.
-
What is a 3D CT scan for facial surgery, and how is it different from a photo simulation?
A 3D CT scan creates a rotatable, measurable digital model of your facial skeleton, the actual bone beneath the skin. A photo simulation only edits an image of the skin’s surface and cannot see the bone at all. That difference is decisive: only the scan can show whether a weak chin, a flat cheek or an asymmetry comes from the bone or from the soft tissue, which determines the correct plan.
-
How much radiation does a 3D CT scan of the face involve?
A cone-beam CT of the face usually involves a lower dose than a conventional CT of the same region, though the dose varies considerably with the machine and the size of the area scanned. I ask for the smallest field of view that captures the bone I need to measure, and I don’t recommend a scan at all when it would not change the plan. I do not scan for elective planning during pregnancy.
-
Can fillers or a photo preview replace a 3D CT scan?
No. Fillers and photo previews work on the soft-tissue surface. If the underlying issue is skeletal, such as an underprojected chin, a deficient cheekbone or an asymmetric jaw, filler cannot truly correct it and a preview cannot even reveal it. The scan identifies the layer responsible, so the correction is directed at the cause rather than masking it.
-
How does 3D CT imaging help with facial asymmetry?
Facial asymmetry can be skeletal, soft-tissue or both, and treating the wrong layer gives a disappointing result. The scan locates the skeletal origin of the difference and allows the unaffected side to be mirrored as a template for the affected side. Before mirroring, I check both sides against the facial midline, because the side that looks normal is sometimes compensating rather than truly normal.
-
Can I use a CT scan I had done elsewhere?
Often, yes, if it is recent, covers the whole region to be operated on, and was taken with your teeth together in your normal bite. I need the original DICOM image files rather than printed pictures or a PDF report, because the measurements are taken from the image data itself. If anything has changed since the scan, such as an injury, an operation or orthodontic treatment, I ask for a new one.
-
Will the 3D model show what my face will look like after surgery?
Not exactly. The model shows the planned change in your bone precisely, but soft tissue does not follow bone millimeter for millimeter, and published reviews of virtual planning report that soft-tissue prediction is less accurate than bone prediction. I use the model to define the skeletal change and describe the facial effect as an expected range.
-
Does 3D CT planning make facial bone surgery more accurate?
In orthognathic jaw surgery, where it has been compared directly, yes: a 2024 meta-analysis found the achieved bone position about 0.5 mm closer to the plan on average, and about 1.2 mm closer when custom surgical guides were used. It did not find a significant saving in operating time, and studies limited to cosmetic chin or cheekbone surgery were excluded, so I apply the accuracy finding to my own procedures as a principle rather than as a proven result.
Why do I plan complex facial surgery on the bone first?
I plan on the bone first because the skeleton sets the limits of every facial proportion, and a change that ignores those limits tends to look added on rather than belonging to the face.
That is why the scan comes before the design, and the design before the operation. If you are considering a skeletal change to your face and want to understand how I approach facial plastic surgery in Dubai, the consultation starts with the same question the scan answers: what does your bone actually need?
